THE SMD COMPONENTS ARE PRE SOLDERED TO THE MAIN BOARD
THIS PRODUCT REQUIRES SOME SOLDERING SKILLS
THE ONLY THROUGH HOLE YOU WILL NEED TO SOLDER ARE THE KEYBOARD CONNECTORS (IF USED), THE REGULATOR (TWO CONNECTIONS) AND THE POWER (TWO CONNECTIONS)
SET THE REGULATOR TO 3-3.3V AND GET THE POLARITY CORRECT!
THE ON/OFF SWITCH IS SUPPLIED BUT WHY BOTHER! :)

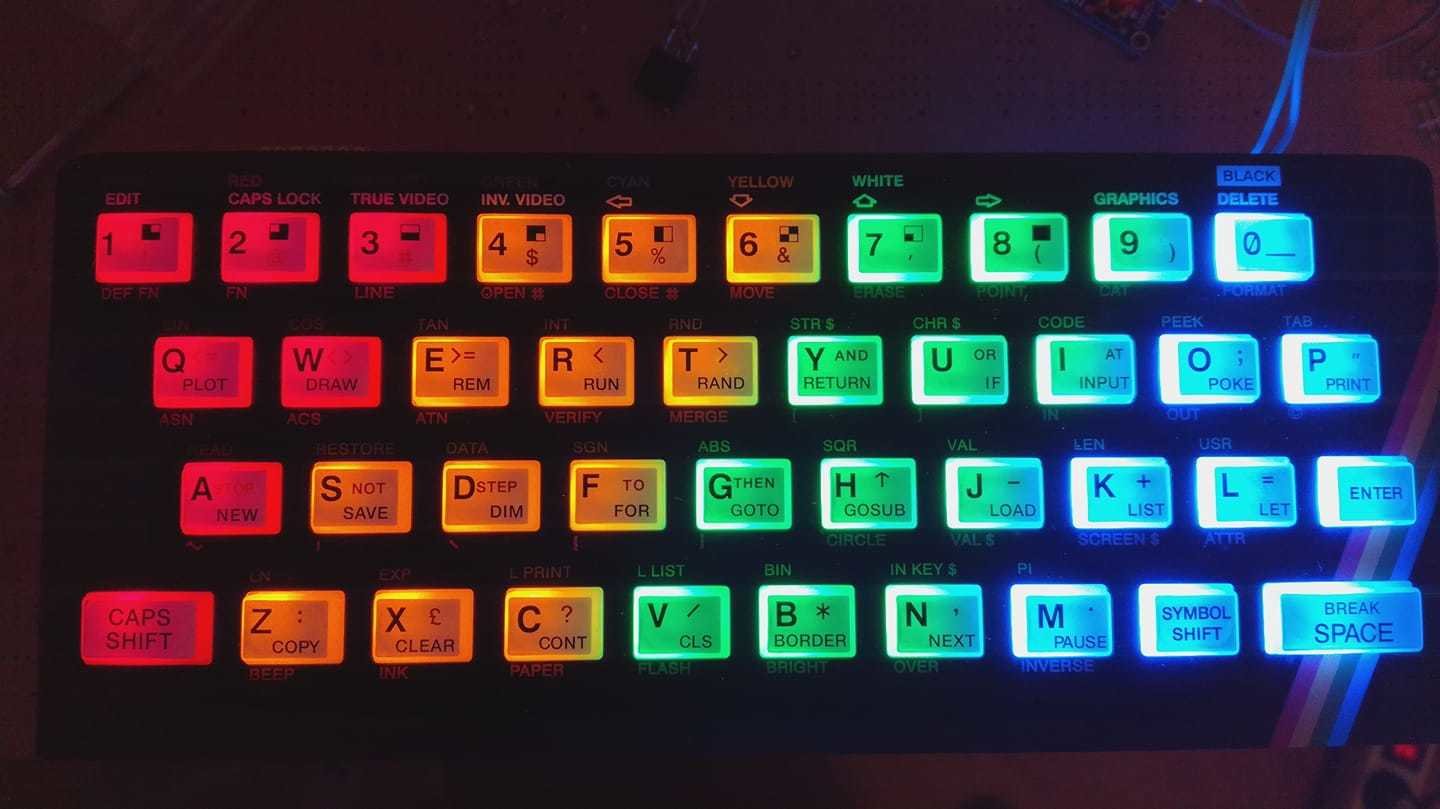

ZELUXANTIGHOSTING KEYBOARD MEMBRANE REPLACEMENT WITH BACK LIGHT FOR ZX SPECTRUM
This board is usable as keyboard membrane replacement for ZX Spectrum computer (model with rubber keys).Specification:-ANTIGHOSTING EFFECT enable press more keys in same time. Zelux enable in ZX games withredefine keys use own keys combinations without limits, because here is not mirror effect as on originalkeyboard membrane. Now is possible with Zelux play multiplayer ZX games on keyboard with anykeys control. 1,2,3,4 players control on one keyboard ? It‘s not problem.-BACK LIGHT EFFECT - under each key is small LED diode for back light. Zelux contain also smallvoltage regulator with switch with three positions (OFF – FULL – LOW). Position OFFdisable back light effect. FULL enable back light effect at 100%. LOW enable back light with lowintensity (ideal for battery powered computer ZX OMNI 128 HQ thanks to low consumption).For back light visibility you must use any transparent version of rubber keymat. Big part of LED diodes is 5mA version and Zelux back light is always powered from 3.3V from voltage regulator.- Board thickness 0.6mm enable easy installation under rubber keyboard. Connection of flat cables is inside ZX case, out of keyboard area = no problems with faceplate installation.- MECHANICAL TACTILE SWITCHES under each key enable clicking effect for verify if key ispressed. Thanks to higher height is possible use faster writing on keyboard because between switch and keys is very small space (low-profile keyboard effect).-Flat cables from Zelux may be directly connected to keyboard connectors on ZX mainboard, but is also possible solder a small PCB to the end of cables for a more stable connection. Each kit or fully soldered version of Zelux contains this small additional board.
